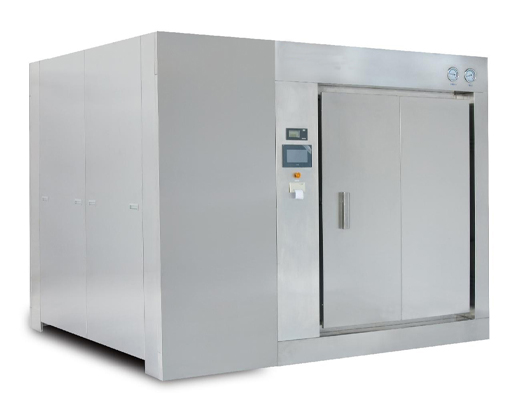

Pure Steam Autoclave Sterilizer

LTCG Series Autoclave Sterilizer is designed strictly according to GMP Standard, adopts horizontal rectangle two layer structure. It works with pure steam as sterilizing media in inner working room. And it use normal hot pot steam pre-heating and drying in jacket layer.

Features

Sterilizing Media: Moisture Heating Sterilizing is adopting full steam as the sterilizing media, take the advantage of its released heat and moisture while it condensation to make the protein of bacterium in Hydration in order to kill them. During this processing, it must adopts pure non-heating steam to keep the production upto GMP requirement.
Main Machine Material: All of the equipment and containers contact to the sterilizing product must up to Cleaning Standard. Regards to Pure Steam Sterilizing autoclave , all of the connection pipes and containers must be stainless steel 316L.

Technical Parameter
SpecificationLTCG-0.24LTCG-0.36LTCG-0.6LTCG-0.8LTCG-1.0LTCG-1.2LTCG-1.5LTCG-1.8LTCG-2.0LTCG-2.5LTCG-3.0LTCG-4.0LTCG-5.0
Chamber Size (L×W×H) (mm)700×600×6001000×600×6001050×680×8501400×680×8501250×750×11001500×750×11001820×750×11002200×750×11002450×750×11001700×1000×15002000×1000×15002700×1000×15003400×1000×1500
Overall Dimensions (L×W×H) (mm)970×1320×18001270×1320×18001330×1400×19201680×1400×19201530×1480×20001780×1480×20002100×1480×20002480×1480×20002730×1480×20002050×1800×22002350×1800×22003050×2050×22003750×2200×2200
Steam Consumption (kg/cycle)20303540455060657080100120150
Water Consumption (kg/cycle)150150200220250300350380400450550650750
Power (kW)2.52.52.52.54.54.54.54.54.55.55.56.57.5
Weight (kg)900100012001400150017001900210023002800320038004500
